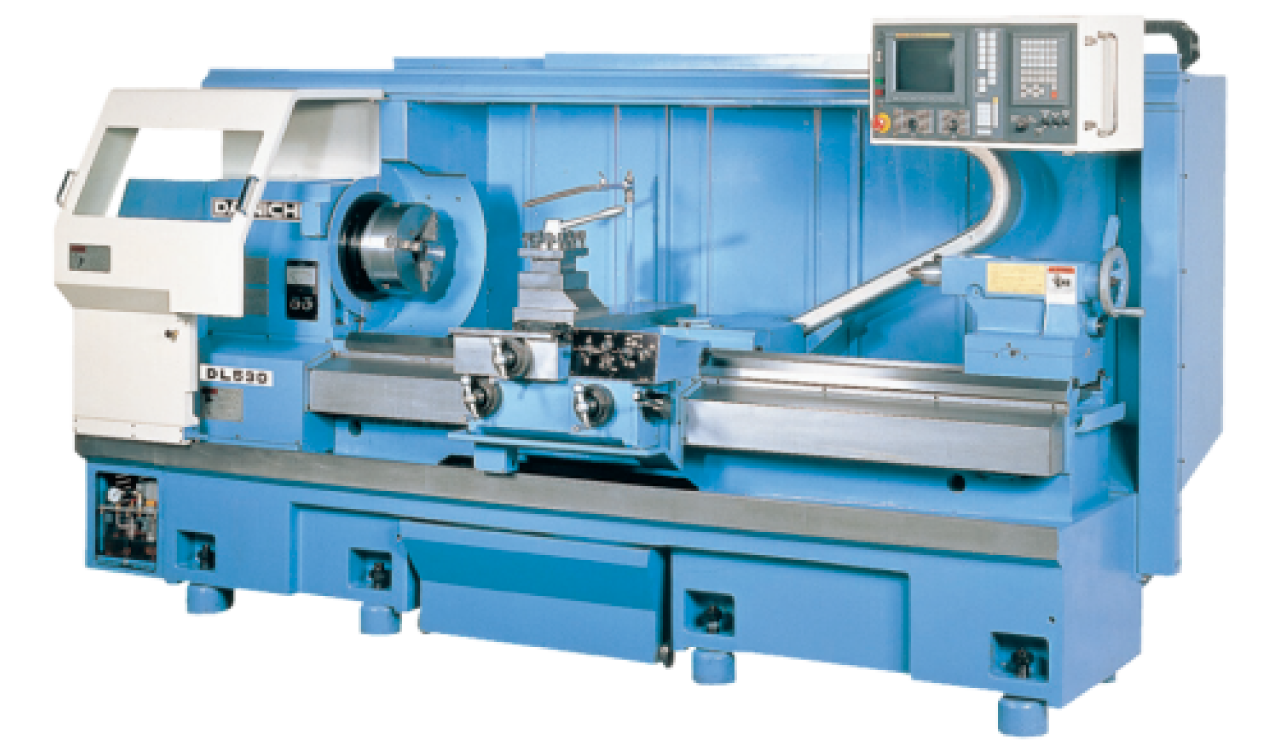

DL530

Witnessing the next generation in reliability.

Compatibility with a broad range of equipment. Highly reliable precision lathes capable of working at full capacity from the day they are installed.

  • Integrated bed structure for greater rigidity
  • Constant surface speed control provided as standard
  • Retains the same handle positioning as our general-purpose machines!
  • Allows the storing of up to 20 machining guidance data types!
  • Repeat cycle functionality provided as standard (teaching & playback)!
  • Equipped with the latest in CNC lathe technology!
  • Comes installed with DAINICHI’s proprietary “Yasashi” (easy-to-use) machining software
  • Comes equipped with our internal “Sukkiri” computer controller
  • A new generation of equipment removing the need for NC programs
  • Uses ball screws and curvic couplings for greater performance and precision
  • Offers outstanding operability allowing for high-speed, high-quality machining
  • Ideally suited to these users!!

Main Spec

Swing over bed
mm(inch)
530(20.9)
Swing over carriage
mm(inch)
300(11.8)
Distance between centers
mm(inch)
1000・1500(39.4)・(59.1)
Supporting weight between centers
kg(lbs)
1000(2200)
Main motor
kw(hp)
9/7.5(12/10)
Spindle speeds
min-1
17~1700
