Products Information

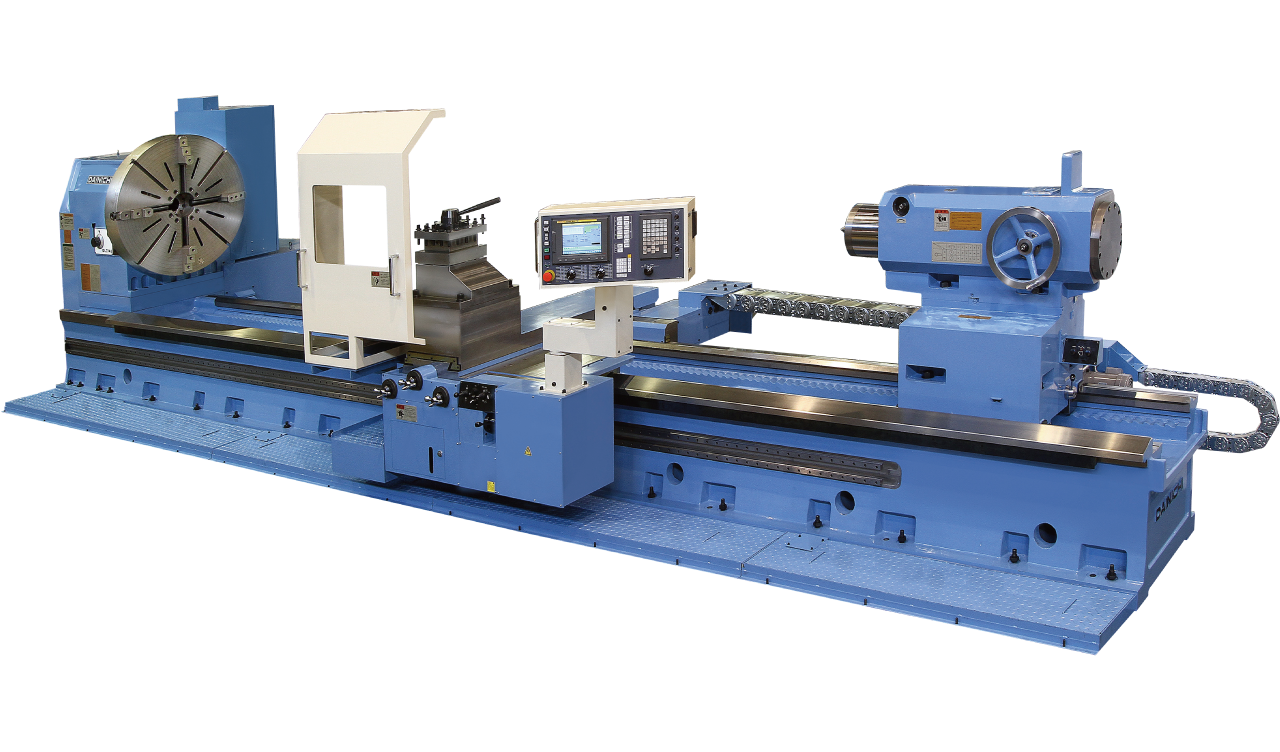

DLⅡ142/152

Witnessing the next generation in reliability.

Compatibility with a broad range of equipment. Highly reliable precision lathes capable of working at full capacity from the day they are installed.

  • Integrated bed structure for greater rigidity
  • Constant surface speed control provided as standard
  • Retains the same handle positioning as our general-purpose machines!
  • Allows the storing of up to 20 machining guidance data types!
  • Repeat cycle functionality provided as standard (teaching & playback)!
  • Equipped with the latest in CNC lathe technology!
  • Comes installed with DAINICHI’s proprietary “Yasashi” (easy-to-use) machining software
  • Comes equipped with our internal “Sukkiri” computer controller
  • A new generation of equipment removing the need for NC programs
  • Uses ball screws and curvic couplings for greater performance and precision
  • Offers outstanding operability allowing for high-speed, high-quality machining
  • Ideally suited to these users!!

Main Spec

Swing over bed
mm(inch)
1420/1520(55.9/59.8)
Swing over carriage
mm(inch)
1000/1100(39.4/43.3)
Distance between centers
mm(inch)
1500~10000(59.1~393.7)
Supporting weight between centers
kg(lbs)
8000(17600)
Main motor
kw(hp)
26/22(34.9/29.5)
Spindle speeds
min-1
7~500
